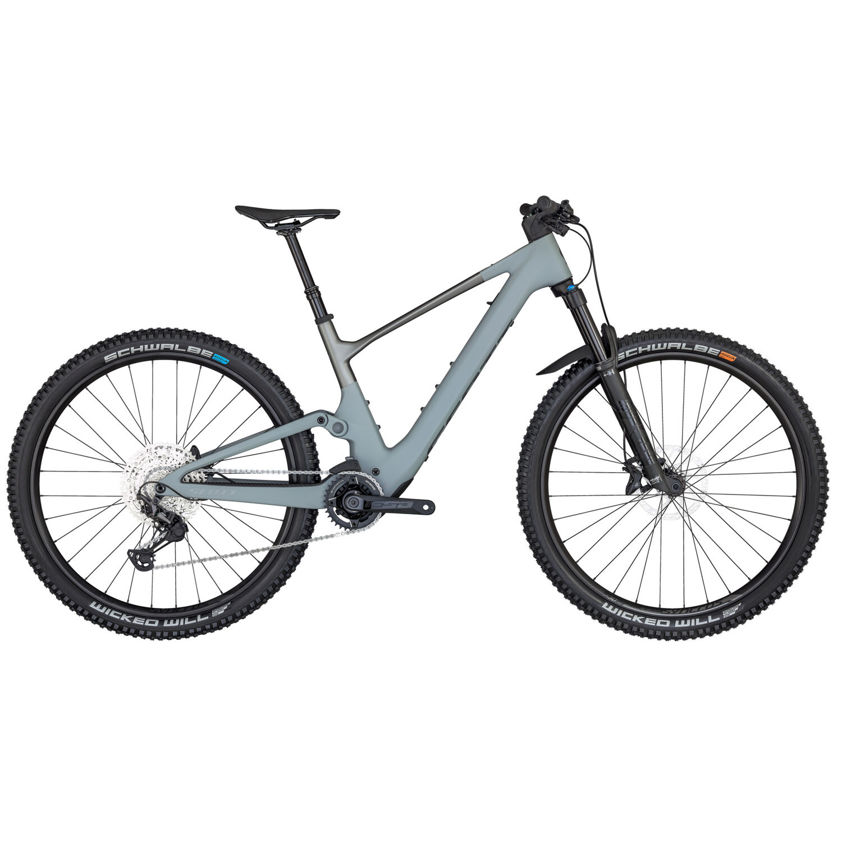

An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Ninorsquo-s speed.
, ,Please note that bike specifications are subject to change without prior notice
,Specifications
Frame : Carbon HMF Main Frame / Alloy SST-CST, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm ChainlineFork: FOX 34 Float Rhythm Air Grip, 3 modes / Kabolt 15x110mm axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 130mm travel
Fork Suspension Travel: 130
Rear Shock: FOX NUDE 6T EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Low Speed Adj. / Custom large Air volume / Reb. Adj., Bearing Hardware / Travel 130-90-Lockout / T165X45mm
Rear Shock Suspension Travel: 130
Derailleur: Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed
Shift Levers: Shimano Deore SL-M6100-IR / Rapidfire Plus, I-spec EV clamp
Number Of Gears: 12
Brake Front: Shimano Deore M6120 4 Piston Disc
Brake Rear: Shimano Deore M6120 4 Piston Disc
Brake Disc Front: SM-RT64 CL 180mm
Brake Disc Rear: RT-EM600 CL 180mm
Rims: Syncros X-30SE / 32H / 30mm, Tubeless ready
Tire Front: Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Soft
Tire Rear: Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Grip
Hub Front: Formula CL-811 / 15x110mm
Hub Rear: Formula CL-148M / 12x148mm / Micro Spline, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools
Spokes: Stainless Black 15G / 1.8mm
Handlebar: Syncros Fraser 2.0 DC Alloy 6061 D.B., mini Rise / back sweep 8deg. / 760mm
Stem: Syncros DC 2.0, Syncros Cable Integration System, 0deg. rise / 6061 Alloy / 31.8mm / 1 1/8"
Headset: Syncros - Acros Angle adjust Cable Routing HS System, +-0.6deg. head angle adjustment, ZS56/28.6 ? ZS56/40 MTB
Grips: Syncros Performance XC lock-on grips
Saddle: Syncros Tofino 2.0 Regular, CRMO rails
Seat Post: Syncros Duncan Dropper Post 2.0, 31.6mm / S M size 125mm / L size 150mm / XL size 170mm
Remote System: SCOTT TwinLoc 2 Technology, Suspension Dropper Remote, 3 Suspension modes
Crankset: FSA Alloy crankset / 175mm / 34T
Drive: Shimano CN-M6100
Sprockets: Shimano CS-M6100 / 10-51 T
Bidex Mo: MO72
Bidex Mp: MP20
Bidex Mt: MT25
Motor: TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery: TQ Internal 360Wh
Battery Capacity: 360
Display: TQ HPR, Bluetooth / ANT+ / Dedicated Smartphone app
Charger: TQ 100-240V-4A
Bodysize Min: 160
Bodysize Max: 170
Permissible Total Weight: 128
Stack: 615
Reach: 416
Seat Tube Length: 415
Seat Tube Angle: 76,8
Top Tube Length: 562
Head Tube Length: 110
Head Tube Angle: 65,5
Stem Length: 50
Stem Angle: 0
Handlebar Width: 760
Handlebar Backsweep: 8
Wheelbase: 1176
Standover: 765
Chainstay Length: 450
Fork Installation Length: 130
Bottom Bracket Height: 339
Bottom Bracket Drop: 39
Crank Length: 175
Dropper Travel: 125
