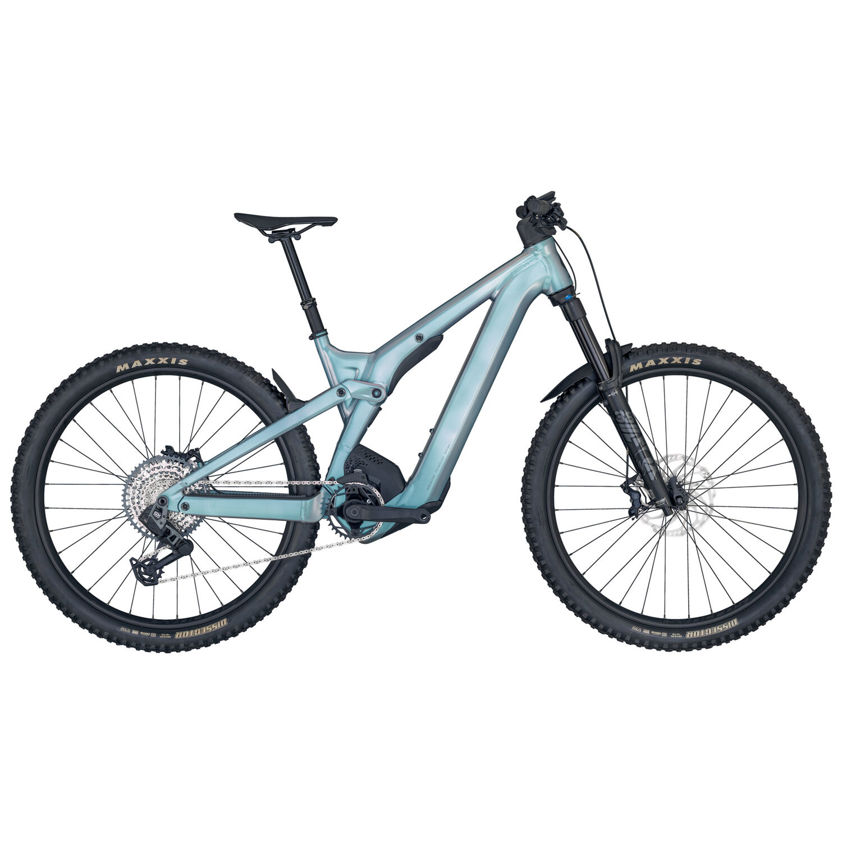

The Patron eRIDE 910 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - Boss the trails.
,
, Please note that bike specifications are subject to change without prior notice
Specifications
Frame : Alloy Frame Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch SmartSystem / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. CableFork: FOX 38 Perf. Air / eMTB+ / FIT4, 3 modes with low Speed adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
Fork Suspension Travel: 160
Rear Shock: FOX Float EVOL eRIDE Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj., Travel 160mm / 205x60mm
Rear Shock Suspension Travel: 160
Derailleur: SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
Shift Levers: SRAM GX Eagle AXS Rocker Controller
Number Of Gears: 12
Brake Front: Shimano SLX / BR-M7120 4 Piston
Brake Rear: Shimano SLX / BR-M7120 4 Piston
Brake Disc Front: SM-RT70 CL 203mm
Brake Disc Rear: SM-RT70 CL 203mm
Rims: Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
Tire Front: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra
Tire Rear: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra
Hub Front: Formula CL-811 / 15x110mm
Hub Rear: Formula ECT-1481 / Boost 148x12mm
Spokes: Stainless Black
Handlebar: Syncros Hixon 1.5 / Alloy 7050D.B., 12mm rise / 9deg. / 780mm
Stem: Syncros AM1.5 / 7050 Alloy, 31.8mm / 4deg. / 1 1/8"
Headset: Acros / 1.8", ZS66 OD74 / integr. Cable
Grips: Syncros Endurance lock-on grips
Saddle: Syncros Tofino 2.0 Regular
Seat Post: FOX Transfer Dropper Post, 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
Remote System: SCOTT TwinLoc 2 Technology, Suspension Dropper Remote, 3 modes
Crankset: FSA CK-745 165mm / 34T
Drive: SRAM CN GX Eagle Transmission
Sprockets: SRAM GX Eagle XS 1275 Transmission 10-52T
Front Light: Front Light Cable pre-installed
Rear Light: Syncros integrated rear fender light
Mudguards: Syncros Fork Fender
Bidex Mo: MO12
Bidex Mp: MP20
Bidex Mt: MT25
Motor: Bosch Performance CX, EU: 25kmh / INT: 20mph
Battery: PowerTube 750Wh
Battery Capacity: 750
Display: Bosch LED Remote Kiox 300
Charger: 4A Charger
Bodysize Min: 160
Bodysize Max: 170
Weight: 26,5
Permissible Total Weight: 128
Stack: 635
Reach: 433
Seat Tube Length: 411
Seat Tube Angle: 77
Top Tube Length: 579
Head Tube Length: 120
Head Tube Angle: 64,5
Stem Length: 40
Wheelbase: 1222
Standover: 766
Chainstay Length: 454
Fork Rake: 42
Fork Installation Length: 567
Bottom Bracket Height: 347
Bottom Bracket Drop: 30
